The Specialist In Drum Handling Equipment                                   Phone: (315) 437-8475   Fax: (315) 437-1029

Drum dumper shown with Top Rim Clamp Option for rimmed 55-gallon plastic drum
Top Rim Clamp MORcinch TM
Option for your
rimmed 55-gallon drum.

Drum dumper shown with Bracket Assembly Option for rimless plastic drum, and recommended for fiber drum
Bracket Assembly
MORcinch TM Option
needed for rimless plastic drum. Also recommended when handling a fiber drum.

Drum dumper shown with Optional Diameter Adaptor for smaller drum
Diameter Adaptor for handling a smaller drum.

Custom Versions Available

Custon Hydra-Lift Drum Karrier for 85-gallon salvage drum
Custom heavy-duty drum dumper for 85-gallon salvage drum has greater capacity



Heavy-Duty Hydra-Lift Karriers
Drum carrier to lift and pour a 1200 Lb. (545 kg) drum
up to 72" (183 cm) high

Heavy-Duty Hydra-Lift Karriers provide controlled dispensing of your drum.

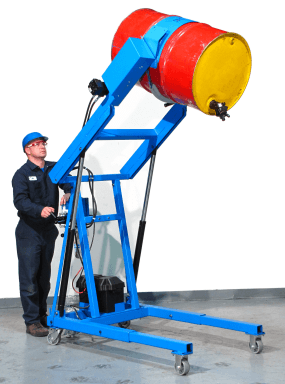

image coming soon
Model 410-115

Heavy-Duty Hydra-Lift Karrier
with battery power lift and tilt.

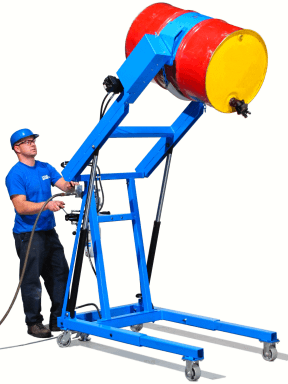

Heavy-Duty Hydra-Lift Karrier with air power lift and tilt

Model 410-114

Heavy-Duty Hydra-Lift Karrier
with air power lift and power tilt.

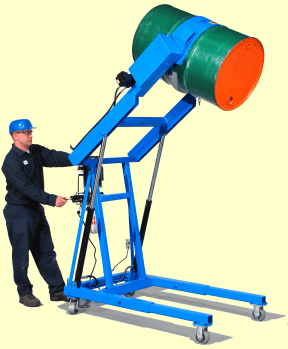

Heavy-Duty Hydra-Lift Karrier with AC power lift and tilt

Model 410-110

Heavy-Duty Hydra-Lift Karrier
with AC power lift and power tilt.

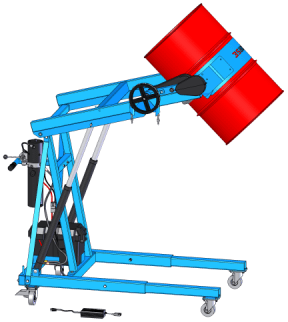

Heavy-Duty Hydra-Lift Karrier with DC power lift, but manual drum tilt control.

Model 410-125

Heavy-Duty Hydra-Lift Karrier
with AC power lift, but manual drum tilt control.

Heavy-Duty Hydra-Lift Karrier with air power lift, but manual tilt

Model 410-124

Heavy-Duty Hydra-Lift Karrier
with air power lift, but manual tilt.

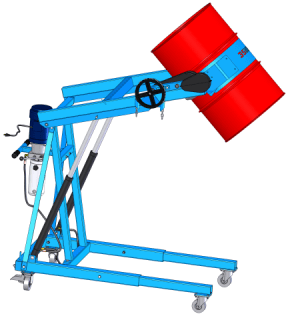

Heavy-Duty Hydra-Lift Karrier with AC power lift, butt manual drum tilt control

Model 410-120

Heavy-Duty Hydra-Lift Karrier
with AC power lift, but manual drum tilt control.

Safe drum handling requires well-designed, ergonomic drum handling equipment to reduce risks of injury or property damage. Heavy-Duty Hydra-Lift Drum Karriers combine incredible strength with simple drum handling by one person.

With Heavy-Duty Hydra-Lift Karriers you can lift a 1200 Lb. (545 kg) drum, and turn it 360 degrees in either direction to pour up to 72" (183 cm) high.

Drum carriers are available with battery, electric, or air powered lift and tilt.

Features:

  • Lift, move, rotate and drain your heavy 55-gallon (208 liter) steel drum at up to  72" (183 cm) maximum pour height
  • Drum Carrier Capacity
  • MORcinch TM drum handling system automatically cinches from 23.5" down to 22" diameter drum
  • Dual hydraulic cylinders increase capacity and add stability
  • Parallel legs provide a compact footprint - 65-3/8" x 35-3/8" (166 x 90 cm)
  • Durable steel wheels and swivel casters travel smoothly under heavy load
  • Step-down floor lock holds unit in place while dispensing drum

Options:

  • Install MORcinch TM Options to handle almost any drum
    • Top Rim Clamp for a rimmed plastic drum
    • Bracket Assembly for a rimless plastic drum, or to more securely hold a fiber drum
    • Diameter Adaptors for various sizes of smaller drums
  • Handle drum with drum faucet or drum cone in place

Models available with Spark Resistant Parts

It's a Cinch to handle almost any drum, with the
MORcinch Drum Handling System

Drum Handling System


  • Drum holder automatically cinches for 22" to 23.5" (56 to 59.7 cm) diameter drum
  • Accepts MORcinch Options to handle your plastic drum
  • Accepts Diameter Adaptors for your smaller drums
  • Includes safety covered gears for your protection
  • Has durable stress-relief weld joints for years of service
  • Cinch chain has flexible chain cover to help protect drum sidewall
  • Optional Web Strap with Ratchet to secure steel drum

MORStop Tilt-BrakeThe MORStop Tilt-Brake is included on all manual tilt Heavy-Duty Hydra-Lift Karriers to automatically prevent uncontrolled drum tilting.
Model # Heavy-Duty Hydra-Lift Karrier Description
410-110 Drum dumper with AC power lift and AC power tilt
410-114 Drum dumper with Air power lift and Air power tilt
410-115 Drum dumper with Battery power ** lift and Battery power tilt
410-120 Drum dumper with AC power lift and Manual pull chain and chain wheel tilt
410-124 Drum dumper with Air power lift and Manual pull chain and chain wheel tilt
410-125 Drum dumper with Battery power ** lift and Manual pull chain and chain wheel tilt
410 Drum dumper with Manual hand pump lift and Manual pull chain and chain wheel tilt
410M-114 Drum dumper with spark resistant parts, Air power lift and Air power tilt
410M-124 Drum dumper with spark resistant parts, Air power lift and Manual pull chain and chain wheel tilt
410M Drum dumper with spark resistant parts, Manual hand pump lift and Manual pull chain and chain wheel tilt

* Half-full rating of Heavy-Duty Hydra-Lift Karriers is an indication of capacity for tilting an unbalanced, bottom-heavy drum. A partially full drum with unbalanced and shifting load is harder to tilt than full drum.

** Models with 12V DC power include battery and 110V AC charger.

Drum dumper on wheels to lift, move and pour drum. With Morse heavy-duty hydra-lift drum dumpers you can lift your drum weighing up to 1200 Lb. and control dispensing at up to 72" high.

Last Updated: 11/29/11
